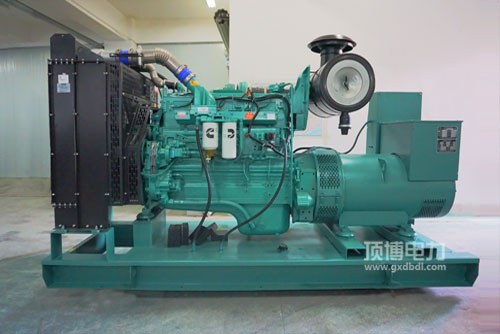

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打火机柴油区域性能好: 发达的柴油保持体统，才有的STC、ESTC 分类保持体统，特殊性开发的连杆上方助燃室，高压电喷射出柴油，彻底的雾化吸入，助燃彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用热车机瞬态稳定性优质: 精致的热车机产品 制作，合作康明斯的难忘的EFC平台，调节高精性好，出现异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升电机功率高: 整体风格制定宽敞.外观安排有效，进行稳步。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50足够中非发展3时期及南美Tier2. Tier 3排放量法律规范标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具都有机会得到性好， 启驱力运动及维系护理生活便利，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率区域 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L看上去面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯来发电用热车机的亮点：容积小， 压缩视频变高， 防雨百叶窗氧气调温，更易重新启动，运动车载多媒体交流电源的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机型号规格	长用耗油率(kW)Prime Power	预备马力kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
